HDCAM SR TRANSFER TO PRORES 422HQ FILES ALL CODECS SUPPORTED
Oxford Duplication Centre specialise in HDCAM SR conversion to digital files. All frame rates and codecs are supported.
Legacy Tape Format Transfer, Conversion and Encoding

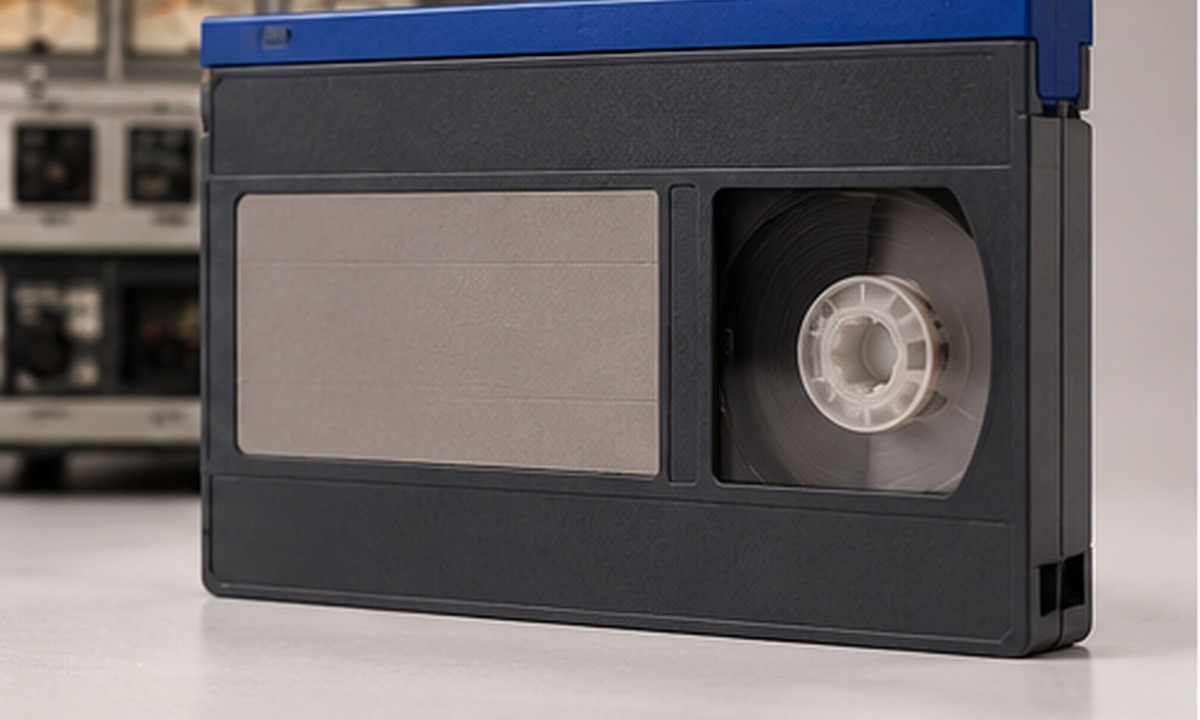

HDCAM SR was introduced in 2003 and standardised in SMPTE 409M-2005. It uses a higher particle density tape and is capable of recording in 10 bits 4:2:2 or 4:4:4 RGB with a video bitrate of 440 Mbit/s, and a total data rate of approx. 600 Mbit/s.
The increased bitrate (over HDCAM) allows HDCAM SR to capture much more of the full bandwidth of the HDSDI signal (1920X1080). Some HDCAM SR VTRs can also use a 2x mode with an even higher video bitrate of 880 Mbit/s, allowing for a single 4:4:4 stream at a lower compression or two 4:2:2 video streams simultaneously.
HDCAM SR uses MPEG-4 Part 2 Simple Studio Profile for compression, and expands the number of audio channels up to 12 at 48 kHz/24-bit. Our studio uses Sony SRW-5800 VTR decks, specifically designed for HDCAM SR tape conversion.
HDCAM SR / HDCAM Transfer to Digital Files Frame Rates:24PsF, 23.98PsF, 50i, 25PsF, 59.94i, 29.97PsF 1920X1080 HD pixel resolution.
Please contact us on 01865 457000 or email cheryl@oxfordduplicationcentre.com for a competitive quotation.
| USING THE HIGH PERFORMANCE, HIGH QUALITY ENCODING FROM AWS ELEMENTAL AND BLACKMAGIC DECKS How do you capture video tapes ? We use Blackmagic and AWS Elemental conversion units. With built in high quality de-interlacing, our conversion units offer the most advanced improved image uality with excellent noise reduction. What professional machines do you use? U-Matic SP decks, Sony Digital Betacam, DigiBeta, BetacamSP BetacamSX MPEG IMX, DV Decks, DVCam, DVCamHD, Panasonic Decks, DVCPRO, DVCPRO50 - For both large and small video tapes Can you up-scale SD to HD? Yes, our hardware can up-scale digital files which offer image sampling, edge detection techniques and multi-direction diagonal filters. Are tapes cleaned before transfer? All tapes are gently cleaned. This is to ensure the best possible conversion but also to preserve our machinery. Can I drop orders in or post them to you? You are most welcome to bring orders in to our office. Alternatively, you can send your order using the Post Office or our couriers. How long do the orders take to process? This depends upon the order and the difficulties associated with magnetic tape. We would need to assess your order to offer an exact timeline. If your order is needed in a hurry then we can support you with our express service. | |||||||
|---|---|---|---|---|---|---|---|
| HDCAM SR • HDCAM • DIGITAL BETACAM • DVCPRO HD • 3/4" U-MATIC • BETACAM SP • DVCAM • HI8 • BETACAM SX • VHS NTSC + PAL • VHS/HI8/MINIDV |
|||||||
| COST PER VIDEO TAPE TO DIGITAL FILE | 1+ | 5+ | 10+ | 25+ | 50+ | 100+ | |
| Viewing File | H.264/MPEG-4 | 32.50 | 30.00 | 27.50 | 25.00 | 22.50 | 20.00 |
| Editing File | Pro-Res/MOV | 50.00 | 45.00 | 40.00 | 35.00 | 30.00 | 25.00 |
| Archive 1 | FFV1 | 50.00 | 45.00 | 40.00 | 35.00 | 30.00 | 25.00 |
| Archive 2 | 10bit Uncompressed | 60.00 | 55.00 | 50.00 | 45.00 | 40.00 | 35.00 |
| ADDITIONAL SERVICES | 1+ | 5+ | 10+ | 25+ | 50+ | 100+ | Up-Converting Digital Files | 14.00 | 12.75 | 11.25 | 9.75 | 9.00 | 8.00 |
| Additional H264/MPEG4 Access Files | 14.00 | 12.75 | 11.25 | 9.75 | 9.00 | 8.00 | |
| Tape Baking - Sticky Shed Syndrome | 14.00 | 12.75 | 11.25 | 9.75 | 9.00 | 8.00 | |
| All prices exclude VAT @ 20% Clients are requested to supply their own hard drive, alternatively we can supply these at an addtional cost. Turnaround is dependant upon the project, which can be discussed tosuit your requirements. |
|||||||
